AK2364

Two-way Radio Filterless FM Detector LSI

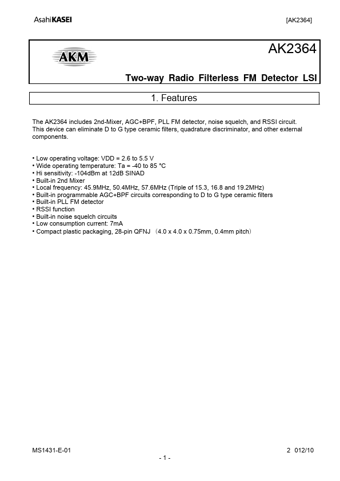

AK2364 Features

* The AK2364 includes 2nd-Mixer, AGC+BPF, PLL FM detector, noise squelch, and RSSI circuit. This device can eliminate D to G type ceramic filters, quadrature discriminator, and other external components.

* Low operating voltage: VDD = 2.6 to 5.5 V

* Wide operating temperature: Ta = -40

AK2364 General Description

2nd-mixer to convert the input signal down to 450Hz. The circuit composed of AGC and BPF, where the desired signal is amplified and spurious components included in the signal from the 2nd-mixer are eliminated. The circuit to divide the signal from LOIN pin and supply BPF with CLK. The circuit to amp.

AK2364 Datasheet (454.44 KB)

Preview of AK2364 PDF

Datasheet Details

Part number:

AK2364

Manufacturer:

AKM

File Size:

454.44 KB

Description:

Two-way radio filterless fm detector lsi.
