AK2365A

FM IF Detector

AK2365A Features

* The AK2365A includes 2nd-Mixer, AGC+BPF, PLL FM detector, noise squelch, and RSSI circuit. This device can eliminate E to J type ceramic filters, quadrature discriminator, and other external components.

* Low operating voltage: VDD = 2.6 to 5.5 V

* Wide operating temperature: Ta = -4

AK2365A General Description

2nd-mixer to convert the input signal down to 450kHz. The circuit composed of AGC and BPF, where the desired signal is amplified and spurious components included in the signal from the 2nd-mixer are eliminated. The circuit to output filtered signal by AGC+BPF. The circuit to divide the signal from L.

AK2365A Datasheet (476.43 KB)

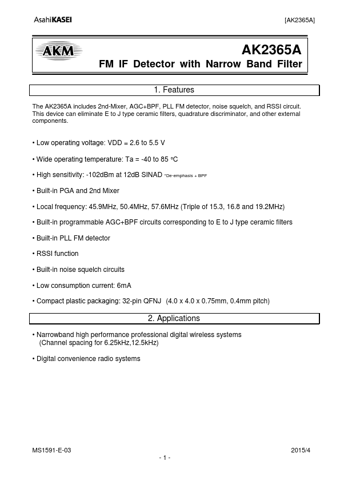

Preview of AK2365A PDF

Datasheet Details

Part number:

AK2365A

Manufacturer:

AKM

File Size:

476.43 KB

Description:

Fm if detector.
