AK2346B - Two-way Radio Audio Processor

Product Overview

AKM

AK2346B Two-way Radio Audio Processor by AKM - Datasheet Preview — Datasheet preview – AK2346B

Datasheet Details

Part number	AK2346B
Manufacturer	AKM
File Size	463.51 KB
Description	Two-way Radio Audio Processor
Datasheet	AK2346B Datasheet

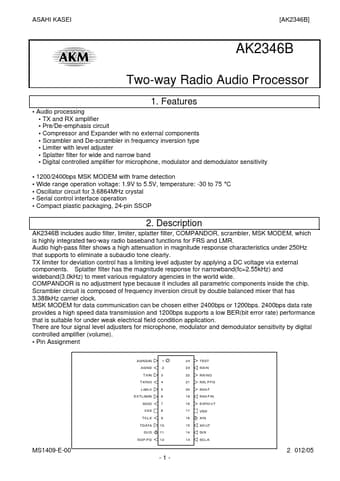

Additional preview pages of the AK2346B datasheet.

Product details

Description

AK2346B includes audio filter, limiter, splatter filter, COMPANDOR, scrambler, MSK MODEM, which is highly integrated two-way radio baseband functions for FRS and LMR.

Features

Audio processing.
TX and RX amplifier.
Pre/De-emphasis circuit.
Compressor and Expander with no external components.
Scrambler and De-scrambler in frequency inversion type.
Limiter with level adjuster.
Splatter filter for wide and narrow band.
Digital controlled amplifier for microphone, modulator and demodulator sensitivity.
1200/2400bps MSK MODEM with frame detection.
Wide range operation voltage: 1.9V t.
