AK3101 Datasheet - AKM

Ultra Low Noise Coreless Current Sensor

AK3101 Features

* Ultra low noise : -102 dBm / √ Hz (integrated noise 0.7 mVrms, 100 Hz to 200 kHz integration)

* No hysteresis output, because of not containing the magnetic material

* Very small primary conductor resistance : 1.6 mΩ

* High Accuracy : 1.5% F.S. (Ta = -40 to 90 °C Ty

AK3101 General Description

AK3101 is an open-type current sensor using a Hall sensor which outputs the analog voltage in proportion to the AC/DC current. Ultra low noise property is realized by a III-V compound semiconductor Hall element of high sensitivity and signal processing technology. In addition, since AK3101 has a cor.

AK3101 Datasheet (779.95 KB)

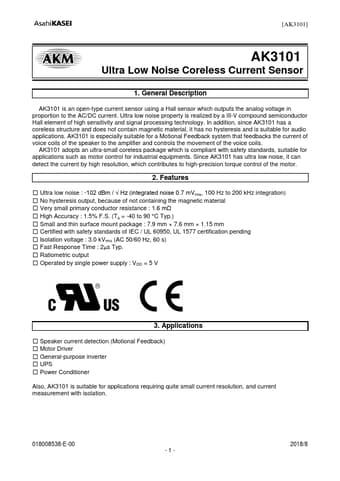

AK3101 Datasheet Preview — Preview of AK3101 PDF

Datasheet Details

Part number:

AK3101

Manufacturer:

AKM

File Size:

779.95 KB

Description:

Ultra low noise coreless current sensor.
