AK3103 Datasheet, Current Sensor, AKM

Ultra low noise coreless current sensor

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Asahi Kasei Microsystems Corporation	AK3103	AK3103	IC CORELESS CURRENT SENSE 14SOP	DigiKey	0	1000 units	$4.55	🛒 Buy Now

📥 Download PDF (781.54 KB)

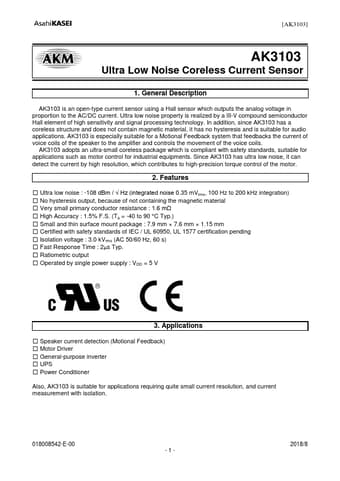

AK3103 Datasheet Preview Page 1 — Preview of AK3103 Datasheet

PDF File Details

Part number:

AK3103

Manufacturer:

AKM

File Size:

781.54 KB

Download:

📄 Download the AK3103 Datasheet PDF

Description:

Ultra low noise coreless current sensor.
AK3103 is an open-type current sensor using a Hall sensor which outputs the analog voltage in proportion to the AC/DC current. Ultra low noise property is realized by a III-V compound semiconductor Ha.

✔ AK3103 Features

Ultra low noise : -108 dBm / √ Hz (integrated noise 0.35 mVrms, 100 Hz to 200 kHz integration)
No hysteresis output, because of not containing the magnetic material

✔ AK3103 Application

AK3103 is especially suitable for a Motional Feedback system that feedbacks the current of voice coils of t
