AK5381

24-Bit ADC

AK5381 Features

* † Stereo ∆Σ ADC † On-Chip Digital Anti-Alias Filtering † Single-ended Input † Digital HPF for DC-Offset cancel † S/(N+D): 96dB@5V for 48kHz † DR: 106dB@5V for 48kHz † S/N: 106dB@5V for 48kHz † Sampling Rate Ranging from 4kHz to 96kHz † Master Clock: 256fs/384fs/512fs/768fs (∼ 48kHz) 256

AK5381 General Description

The AK5381 is a stereo A/D Converter with wide sampling rate of 4kHz ∼ 96kHz and is suitable for High-end audio system. The AK5381 achieves high accuracy and low cost by using Enhanced dual bit ∆Σ techniques. The AK5381 requires no external components because the analog inputs are single-ended. The .

AK5381 Datasheet (129.13 KB)

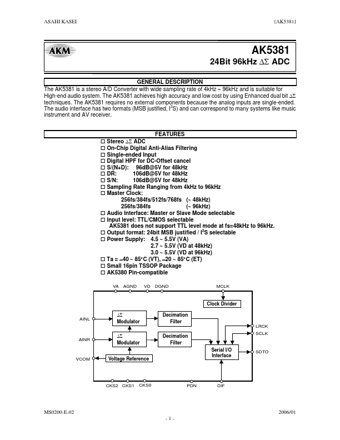

Preview of AK5381 PDF

Datasheet Details

Part number:

AK5381

Manufacturer:

AKM

File Size:

129.13 KB

Description:

24-bit adc.
