AK5385A

24-BIT 192KHZ ADC

AK5385A Features

* p Sampling Rate: 8kHz ~ 216kHz p Full Differential Inputs p S/(N+D): 103dB p DR: 114dB p S/N: 114dB p High Performance Linear Phase Digital Anti-Alias filter

* Passband: 0~21.768kHz (@fs=48kHz)

* Ripple: 0.005dB

* Stopband: 100dB p Digital HPF p Power Supply: 5V ± 5%(Analog),

AK5385A General Description

The AK5385A is a 24bit, 192kHz sampling 2ch A/D converter for high-end audio system. The modulator in the AK5385A uses the Enhanced Dual Bit architecture and the AK5385A realizes high accuracy and low cost. The AK5385A performs 114dB dynamic range, so the device is suitable for AV-amp, AV recorder a.

AK5385A Datasheet (163.67 KB)

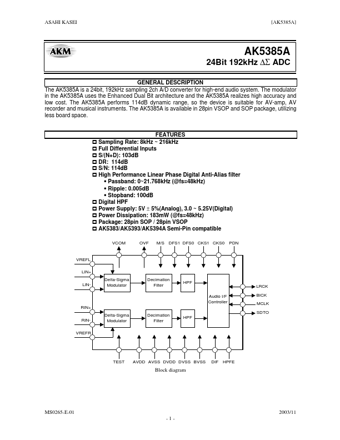

Preview of AK5385A PDF

Datasheet Details

Part number:

AK5385A

Manufacturer:

Asahi Kasei Microsystems

File Size:

163.67 KB

Description:

24-bit 192khz adc.
