AK5352

96kHz Sampling 20bit ADC

AK5352 Features

* † † † † † † † † † Sampling Rate up to 96kHz Full-differential inputs S/(N+D): 97dB DR, S/N: 104dB Linear phase digital filter

* Pass band: 0 ∼ 22kHz(@fs=48kHz)

* Pass band ripple: ± 0.005dB

* Stop band attenuation: 80dB Digital HPF for DC-offset cancel Master clock: 256fs/

AK5352 General Description

The AK5352 is a 20-bit, 96kHz sampling rate for DAT and DVD, 64x oversampling rate(64fs), 2-channel A/D converter for stereo digital systems. The ∆Σ modulator in the AK5352 uses the new developed Enhanced Dual bit architecture. This new architecture achieves the wider dynamic range, while keeping mu.

AK5352 Datasheet (174.37 KB)

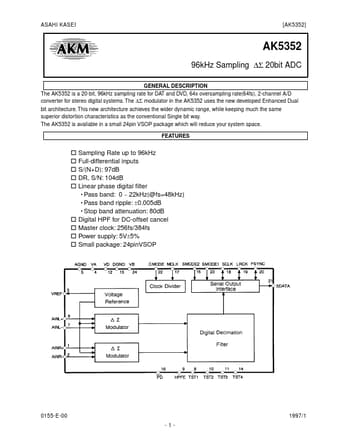

Preview of AK5352 PDF

Datasheet Details

Part number:

AK5352

Manufacturer:

Asahi Kasei Microsystems

File Size:

174.37 KB

Description:

96khz sampling 20bit adc.
