AK5356

Low Power 20-Bit ADC

AK5356 Features

* 1. MIC Block

* MIC Power

* Pre-Amplifier (+13dB / +18dB / +28dB / +33dB) 2. 20bit 2ch ADC

* 2-Input Stereo Selector

* Analog Input PGA: +28dB ∼ - 52dB, Mute

* S/(N+D): 84dB

* DR, S/N: 89dB

* Monaural Mixing

* Digital HPF for DC-offset c

AK5356 General Description

The AK5356 is a low voltage 20bit A/D converter for digital audio system. The AK5356 also includes microphone amplifier and analog input PGA, making it suitable for microphone applications or low-input signal levels. As digital power supply of the AK5356 corresponds to 1.8V, the interface with micro.

AK5356 Datasheet (153.48 KB)

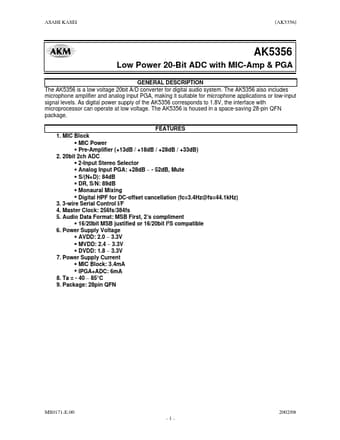

Preview of AK5356 PDF

Datasheet Details

Part number:

AK5356

Manufacturer:

Asahi Kasei Microsystems

File Size:

153.48 KB

Description:

Low power 20-bit adc.
