AK5351

Enhanced Dual bit 20bit ADC

AK5351 Features

* † Full-differential / Single-ended inputs † S/(N+D): 97dB † DR, S/N: 103dB † Linear phase digital filter Pass band: 0~22kHz(@fs=48kHz) Pass band ripple: ±0.005dB Stop band attenuation: 80dB † Digital HPF for DC-offset cancel † Master clock: 256fs/384fs † Power supply: 5V±10% † Small package: 24pinV

AK5351 General Description

The AK5351 is a 20-bit, 64x oversampling rate(64fs), 2-channel A/D converter for stereo digital systems. The ∆Σ modulator in the AK5351 uses the new developed Enhanced Dual bit architecture. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion chara.

AK5351 Datasheet (174.00 KB)

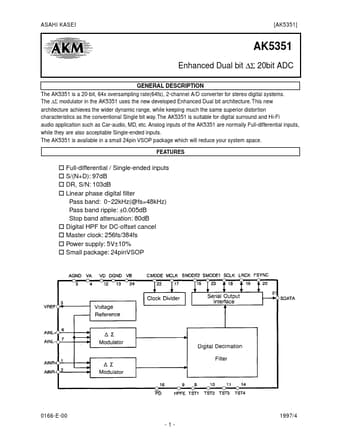

Preview of AK5351 PDF

Datasheet Details

Part number:

AK5351

Manufacturer:

Asahi Kasei Microsystems

File Size:

174.00 KB

Description:

Enhanced dual bit 20bit adc.
