AK5353 Datasheet - Asahi Kasei Microsystems

96kHz 24-BIT ADC

AK5353 Features

* † Stereo ∆Σ ADC † On-Chip Digital Anti-Alias Filtering † Single-ended Input † Digital HPF for DC-Offset cancel † S/(N+D): 84dB@5V, 80dB@3V for 48kHz † DR: 96dB@5V, 92dB@3V for 48kHz † S/N: 96dB@5V, 92dB@3V for 48kHz † Sampling Rate Ranging from 4kHz to 96kHz † Master Clock: 256fs/384fs/5

AK5353 General Description

The AK5353 is a stereo A/D Converter with wide sampling rate of 4kHz∼96kHz and is suitable for multimedia audio system. The AK5353 achieves high accuracy and low cost by using Enhanced dual bit ∆Σ techniques. The AK5353 requires no external components because the analog inputs are single-ended. The .

AK5353 Datasheet (158.26 KB)

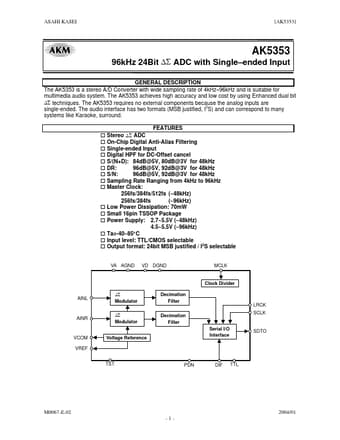

Preview of AK5353 PDF

Datasheet Details

Part number:

AK5353

Manufacturer:

Asahi Kasei Microsystems

File Size:

158.26 KB

Description:

96khz 24-bit adc.
