AK5386 Datasheet - AKM

AK5386 Single-ended 24-Bit ADC

The AK5386 is a stereo A/D Converter with wide sampling rate of 8kHz ∼ 216kHz and is suitable for consumer to professional audio system. The AK5386 achieves high accuracy and low cost by using Enhanced dual bit ∆Σ techniques. The AK5386 requires no external components because the analog inputs are s.

AK5386 Features

* † Single-ended Input † Digital HPF for DC-Offset cancel † S/(N+D): 96dB † DR: 110dB † S/N: 110dB † Linear Phase Digital Anti-Alias Filtering Passband: 0 ∼ 21.768kHz (@ fs=48kHz) Passband Ripple: ±0.005dB Stopband Attenuation: 80dB † Master Clock: 512fs/768fs (Normal Speed) 256fs/384fs (D

AK5386 Datasheet (139.69 KB)

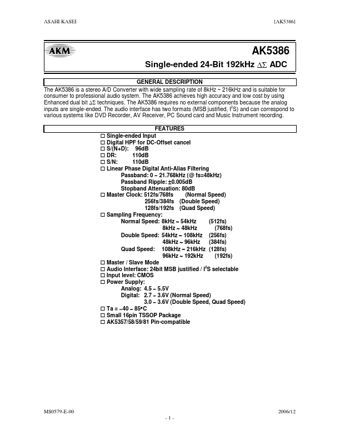

Preview of AK5386 PDF
AK5386 Datasheet Preview Page 2 AK5386 Datasheet Preview Page 3

Datasheet Details

Part number:

AK5386

Manufacturer:

AKM

File Size:

139.69 KB

Description:

Single-ended 24-bit adc.
