AK7735

Dual DSP

AK7735 Features

* Dual DSP: (DSP1 and DSP2 have the same specification. Memory areas are shared by them) - Word length: 28-bit (Simple floating point supported) - Instruction cycle: - Multiplier: - Divider: Max. 6.8ns (3072fs at fs=48kHz) 24 x 24 → 48-bit (Double precision arithmetic available) 24 / 24

AK7735 General Description

The AK7735 is a highly integrated digital signal processor, including a 24-bit stereo ADC with MIC gain amplifiers, a 24-bit stereo ADC with input selector, two 32-bit stereo DACs, 2 stereo sampling rate convertors supporting the sampling frequency up to 192kHz and dual DSPs for Audio/HF process. Ea.

AK7735 Datasheet (2.89 MB)

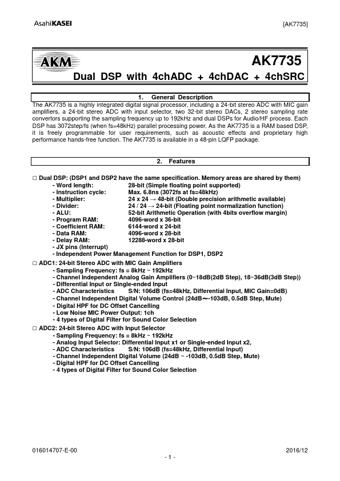

Preview of AK7735 PDF

Datasheet Details

Part number:

AK7735

Manufacturer:

AKM

File Size:

2.89 MB

Description:

Dual dsp.
