AK7742 - 24Bit 2ch ADC + 24Bit 4ch DAC

Datasheet Summary

Description

The AK7742 is a highly integrated audio digital processor, including two stereo 24bit DAC’s and one stereo ADC with input selector.

The stereo DAC and ADC feature high performance, archiving 106dB and 96dB dynamic range respectively, 8kHz to 96kHz sampling rate are supported.

Features

  • DSP: - Word length: 24bit (Data RAM 24bit floating point) - Instruction cycle: 13.6 ns (1536step/fs fs=48kHz; 9216step/fs fs=8kHz) - Multiplier 20 x 16 → 36bit (double precision available) - Divider 20 / 20 → 20bit - ALU: 40bit arithmetic operation (overflow margin 4bit) 24bit floating point arithmetic and logic operation - Program RAM: 1536 x 36bit - Coefficient RAM: 1536 x 16bit - Data RAM: 1536 x 24-bit (24bit floating point) - Delay RAM: 74kbit (3072 x 24bit) - Sampling frequency: 8kH.

📥 Download Datasheet

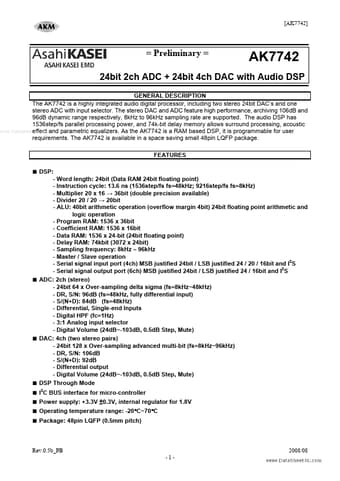

Datasheet preview – AK7742

Datasheet Details

Part number AK7742
Manufacturer Asahi Kasei Microsystems
File Size 382.63 KB
Description 24Bit 2ch ADC + 24Bit 4ch DAC
Datasheet download datasheet AK7742 Datasheet
Additional preview pages of the AK7742 datasheet.

📁 Similar Datasheet

  • AK7740ET - 24bit 2ch ADC + 24bit 4ch DAC (AKM Semiconductor)
  • AK7707 - Multi Core DSP (AKM)
  • AK7719 - Low Power DSP (AKM)
  • AK7719B - Low Power DSP (AKM)
  • AK7722 - 24bit 4ch ADC + 24bit 4ch DAC (AKM)
  • AK7734 - Audio DSP (AKM)
  • AK7735 - Dual DSP (AKM)
  • AK7736A - 2Ch SRCAudio - HF DSP (AKM)
  • AK7736B - Audio/HF DSP (AKM)
  • AK7738 - Multi DSP (AKM)
Other Datasheets by Asahi Kasei Microsystems
  • AK7744VT - 24bit 3ch ADC + 24bit 4ch DAC
  • AK7746 - Audio DSP
  • AK7712 - Built-in 20-bit ADC/DAC Sophisticated Audio DSP
  • AK7712A-VT - Built-in 20-bit ADC/DAC Sophisticated Audio DSP
  • AK7714 - 20-Bit Audio Codec
  • AK7730A - 24bit 2ch adc
  • AK7841 - Monaural Audio Class-D Amp
  • AK7844 - Stereo Audio Class-D Amp

Full PDF Text Transcription

Click to expand full text
[AK7742] = Preliminary = AK7742 24bit 2ch ADC + 24bit 4ch DAC with Audio DSP GENERAL DESCRIPTION The AK7742 is a highly integrated audio digital processor, including two stereo 24bit DAC’s and one stereo ADC with input selector. The stereo DAC and ADC feature high performance, archiving 106dB and 96dB dynamic range respectively, 8kHz to 96kHz sampling rate are supported. The audio DSP has 1536step/fs parallel processing power, and 74k-bit delay memory allows surround processing, acoustic www.DataSheet4U.com effect and parametric equalizers. As the AK7742 is a RAM based DSP, it is programmable for user requirements. The AK7742 is available in a space saving small 48pin LQFP package. FEATURES ■ DSP: - Word length: 24bit (Data RAM 24bit floating point) - Instruction cycle: 13.
