AK7744VT - 24bit 3ch ADC + 24bit 4ch DAC

Datasheet Summary

Description

The AK7744 is a highly integrated audio processing IC featuring four 24-bit D/A converters, a stereo and monau ral input 24-bit A/D and on-chip DSP.

The four D/A converters with 107dB dynamic range, and A/D with 97dB dyn amic range provide high quality analog performance.

Features

  • - DSP: Word length: 24-bit (Data RAM) Instruction cycle time: 40ns (512fs, fs=48kHz) Multiplier: 24 x 16 → 40-bit Divider: 24 / 24 → 16-bit or 24-bit ALU: 34-bit arithmetic operation (Overflow margin: 4bit) 24-bit arithmetic and logic operation Shift+Register: 1, 2, 3, 4, 6, 8 and 15 bits shifted left 1, 2, 3, 4, 8 , 14 and 15 bits shifted right Other numbers in parentheses are restricted. Provided with indirect shift function - Program RAM: 512 x 32-bit - Coefficient RAM: 512 x 16-bit - Data.

📥 Download Datasheet

Datasheet preview – AK7744VT

Datasheet Details

Part number AK7744VT
Manufacturer Asahi Kasei Microsystems
File Size 518.18 KB
Description 24bit 3ch ADC + 24bit 4ch DAC
Datasheet download datasheet AK7744VT Datasheet
Additional preview pages of the AK7744VT datasheet.

📁 Similar Datasheet

  • AK7740ET - 24bit 2ch ADC + 24bit 4ch DAC (AKM Semiconductor)
  • AK7707 - Multi Core DSP (AKM)
  • AK7719 - Low Power DSP (AKM)
  • AK7719B - Low Power DSP (AKM)
  • AK7722 - 24bit 4ch ADC + 24bit 4ch DAC (AKM)
  • AK7734 - Audio DSP (AKM)
  • AK7735 - Dual DSP (AKM)
  • AK7736A - 2Ch SRCAudio - HF DSP (AKM)
  • AK7736B - Audio/HF DSP (AKM)
  • AK7738 - Multi DSP (AKM)
Other Datasheets by Asahi Kasei Microsystems
  • AK7742 - 24Bit 2ch ADC + 24Bit 4ch DAC
  • AK7746 - Audio DSP
  • AK7712 - Built-in 20-bit ADC/DAC Sophisticated Audio DSP
  • AK7712A-VT - Built-in 20-bit ADC/DAC Sophisticated Audio DSP
  • AK7714 - 20-Bit Audio Codec
  • AK7730A - 24bit 2ch adc
  • AK7841 - Monaural Audio Class-D Amp
  • AK7844 - Stereo Audio Class-D Amp

Full PDF Text Transcription

Click to expand full text

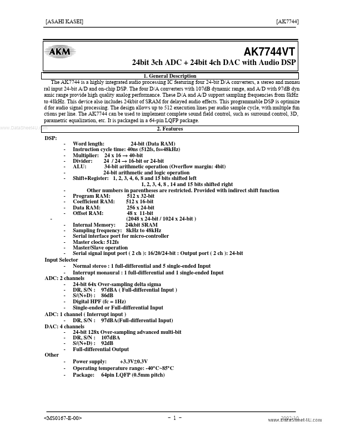

[ASAHI KASEI] [AK7744] AK7744VT 24bit 3ch ADC + 24bit 4ch DAC with Audio DSP 1. General Description The AK7744 is a highly integrated audio processing IC featuring four 24-bit D/A converters, a stereo and monau ral input 24-bit A/D and on-chip DSP. The four D/A converters with 107dB dynamic range, and A/D with 97dB dyn amic range provide high quality analog performance. These D/A and A/D support sampling frequencies from 8kHz to 48kHz. This device also includes 24kbit of SRAM for delayed audio effects. This programmable DSP is optimize d for audio signal processing. The design allows up to 512 execution lines per audio sample cycle, with multiple fun ctions per line.
