AK8448

10 Bit 40 MSPS x 3 Analog Pre-Processor

AK8448 Features

* … Maximum Processing Speed In CDS mode and Clamp mode 1ch, 2ch and 3ch mode: 40M samples/sec per channel 4ch and 6ch mode: 20M sample/sec per channel In DC Direct-coupled mode 1ch, 2ch and 3ch mode: 15M sample/sec per channel 4ch and 6ch mode: 15M sample/sec per channel Maximum Input Level: 1.35Vpp

AK8448 General Description

of Each Block … Clamp / CDS Sensor Interface Circuit It samples the Image signal level from the sensor. The AK8448 has 3 sampling modes

* CDS mode, Clamp mode and DC direct-coupled mode. There are 5 ,number of channel select modes

* 1, 2, 3, 4 and 6 channels. Channel(s) to be used is.

AK8448 Datasheet (1.16 MB)

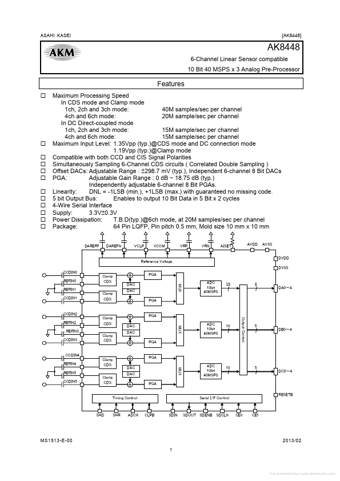

Preview of AK8448 PDF

Datasheet Details

Part number:

AK8448

Manufacturer:

AKM

File Size:

1.16 MB

Description:

10 bit 40 msps x 3 analog pre-processor.
