AK8133 Datasheet - Asahi Kasei Microsystems

AK8133 - Low Suprious Multiclock Generator

The AK8133 is a member of AKEMD’s low power multi clock generator family designed for a high quality audio cock with high performance C/N.

The AK8133 generates different frequency clocks from a 27MHz crystal oscillator or external 27MHz clock input.

It provides them to up to four outputs configured

AK8133 Features

* 27MHz Crystal Input or External Input Four Frequency-Selectable Clock Outputs One 27MHz-Reference Output Selectable Clock out Frequencies: - CLK1: 24.576,36.864MHz - CLK2: 4.096,8.192,11.2896,12.288,16.384 22.5792,24.576,49.152MHz - CLK3: 8.4672,12.288,16.9344,18.432 24.576,33.8688,36.864,73.728MHz

AK8133_AsahiKaseiMicrosystems.pdf

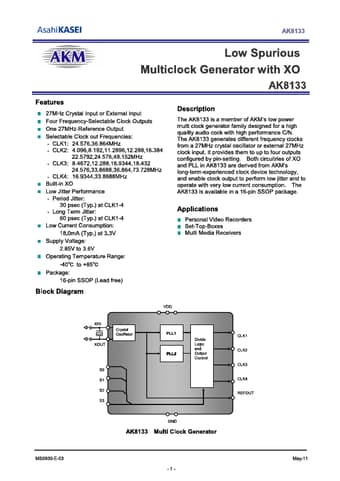

Preview of AK8133 PDF
AK8133 Datasheet Preview Page 2 AK8133 Datasheet Preview Page 3

Datasheet Details

Part number:

AK8133

Manufacturer:

Asahi Kasei Microsystems

File Size:

1.51 MB

Description:

Low suprious multiclock generator.
