AK8130F - Multi Clock Generator

AK8130F Description

AK8130F Low Power Multiclock Generator with VCXO AK8130F .
The AK8130F is a member of AKM’ｓ low power multi clock generator family designed for a feature rich DTV or STB, requiring a range of system clocks wit.

AK8130F Features

* 27MHz Crystal Input Four Frequency-Selectable Clock Outputs One 27MHz-Reference Output Selectable Clock out Frequencies: - 74.1758MHz/Off - 20.000，25.000MHz - 4.9152, 12.000, 24.000MHz - 50.000MHz Built-in VCXO - Pull Range: ±110ppm (Min. ) Low Jitter Performance - Period Jitter: 150 psec (Typ. ) at C

AK8130F Applications

* Digital TV Sets Personal Video Recorders Set-Top-Boxes Multi Media Receivers Block Diagram VDD X1 Voltage Controlled Crystal Oscillator PLL1 PLL1 CLK1 X2 VIN PLL2 Divide Logic and Output Control CLK2 PLL3 S0 S1 S2 CLK3 CLK4 REFOUT GND AK8130F Multi Clock Generator MS1078-E-01 -1- Dec-2

📥 Download Datasheet

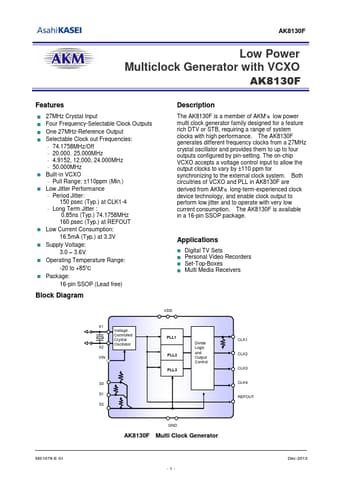

Preview of AK8130F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK8130F
Manufacturer
AKM
File Size
536.68 KB
Datasheet
AK8130F-AKM.pdf
Description
Multi Clock Generator
