AK8130AH - Multi Clock Generator

AK8130AH Description

Low Power Multiclock Generator with VCXO AK8130AH .
The AK8130AH is a member of AKM’s low power multi clock generator family designed for a feature rich DTV or STB, requiring a range of system clocks wi.

AK8130AH Features

* 27MHz Crystal Input Four Frequency-Selectable Clock Outputs One 27MHz-Reference Output Selectable Clock out Frequencies: - 54.000,74.1758, 74.250MHz - 25.000MHz - 4.9152, 12.000, 48.000MHz - 24.576, 33.333MHz Built-in VCXO - Pull Range: ±110ppm (Min. ) Low Jitter Performance - Period Jitter: 150 psec

AK8130AH Applications

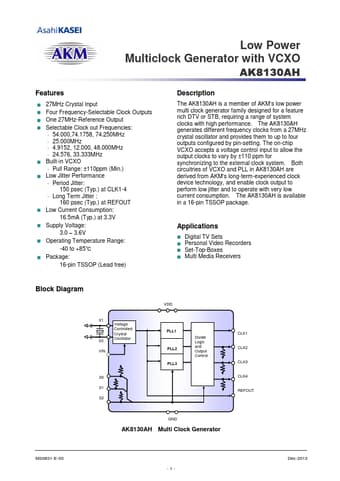

* Digital TV Sets Personal Video Recorders Set-Top-Boxes Multi Media Receivers Block Diagram VDD X1 Voltage Controlled Crystal Oscillator PLL1 PLL1 CLK1 X2 VIN PLL2 Divide Logic and Output Control CLK2 PLL3 S0 S1 S2 CLK3 CLK4 REFOUT GND AK8130AH Multi Clock Generator MS0631-E-03 -1- Dec-
