AK8135S - Multi Clock Generator

Product Overview

AKM

AK8135S Multi Clock Generator by AKM - Datasheet Preview — Datasheet preview – AK8135S

Datasheet Details

Part number	AK8135S
Manufacturer	AKM
File Size	452.36 KB
Description	Multi Clock Generator
Datasheet	AK8135S Datasheet

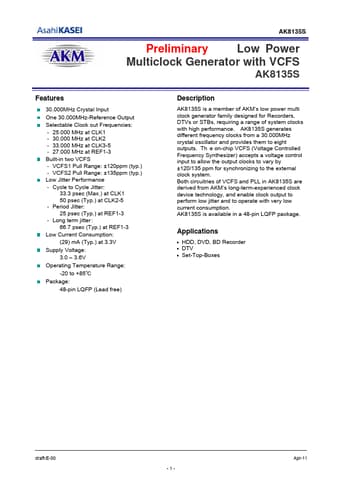

Additional preview pages of the AK8135S datasheet.

Product details

Description

AK8135S is a member of AKM’s low power multi clock generator family designed for Recorders, DTVs or STBs, requiring a range of system clocks with high performance.

Features

30.000MHz Crystal Input One 30.000MHz-Reference Output Selectable Clock out Frequencies: - 25.000 MHz at CLK1 - 30.000 MHz at CLK2 - 33.000 MHz at CLK3-5 - 27.000 MHz at REF1-3 Built-in two VCFS - VCFS1 Pull Range: ±120ppm (typ. ) - VCFS2 Pull Range: ±135ppm (typ. ) Low Jitter Performance - Cycle to Cycle Jitter: 33.3 psec (Max. ) at CLK1 50 psec (Typ. ) at CLK2-5 - Period Jitter: 25 psec (Typ. ) at REF1-3 - Long term jitter： 66.7 psec (Typ. ) at REF1-3 Low Current Consumption: (29) mA (Typ. ) at 3.3V.
