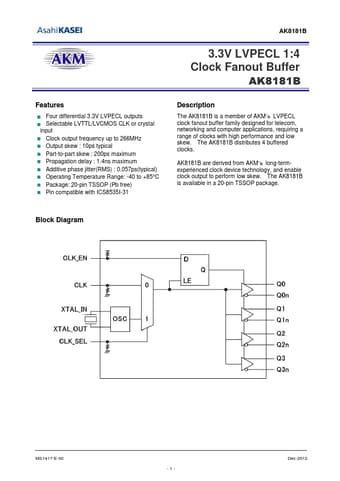

Part number:
AK8181B
Manufacturer:
Asahi Kasei Microsystems
File Size:
396.75 KB
Description:
3.3v lvpecl 1:4 clock fanout buffer.
* Four differential 3.3V LVPECL outputs Selectable LVTTL/LVCMOS CLK or crystal input Clock output frequency up to 266MHz Output skew : 10ps typical Part-to-part skew : 200ps maximum Propagation delay : 1.4ns maximum Additive phase jitter(RMS) : 0.057ps(typical) Operating Temperature Range: -40 to +85°
AK8181B
Asahi Kasei Microsystems
396.75 KB
3.3v lvpecl 1:4 clock fanout buffer.
