AK8186B

Multi Output Clock Generator

AK8186B Features

* Low phase noise PLL : RMS Jitter < 300fs On-chip VCO tunes from 1.75GHz to 2.25GHz External VCO/VCXO to 500MHz optional 1 differential or 2 single-ended Inputs Reference Switchover/Holdover modes Lock Detect 3 pairs of 1GHz LVPECL outputs 2 pairs of 800MHz LVDS outputs 8 250MHz CMOS outputs (two per

AK8186B General Description

The AK8186B is a multi-output clock generator with sub-ps jitter performance. The on-chip VCO tunes from 1.75GHz to 2.25GHz. The distribution section has three pairs of LVPECL buffers (6 outputs) and two pairs of LVDS buffers (4 outputs)/eight CMOS buffers (two per LVDS outputs). The LVPECL outputs .

AK8186B Datasheet (1.83 MB)

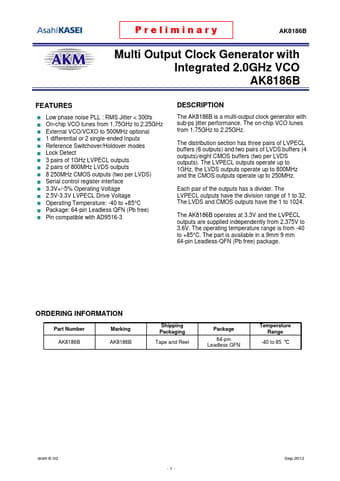

Preview of AK8186B PDF

Datasheet Details

Part number:

AK8186B

Manufacturer:

AKM

File Size:

1.83 MB

Description:

Multi output clock generator.
