AK8181F

3.3V LVPECL 1:4 Clock Fanout Buffer

AK8181F Features

* Four differential 3.3V LVDS outputs Selectable differential PCLK0p/n or LVPECL clock inputs PCLK0p/n pair can accept the following differential input levels; LVDS, LVPECL, LVHSTL, SSTL, HCSL PCLK1p/n supports the following input types; LVPECL, CML, SSTL Clock output frequency up to 650MHz Translates

AK8181F General Description

The AK8181F is a member of AKM’s LVDS clock fanout buffer family designed for telecom, networking and computer applications, requiring a range of clocks with high performance and low skew. The AK8181F distributes 4 buffered clocks. AK8181F are derived from AKM’s long-termexperienced clock device tec.

AK8181F Datasheet (683.55 KB)

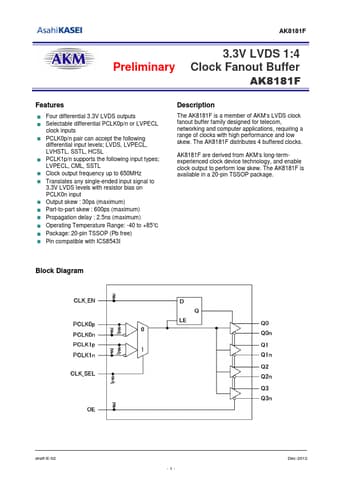

Preview of AK8181F PDF

Datasheet Details

Part number:

AK8181F

Manufacturer:

AKM

File Size:

683.55 KB

Description:

3.3v lvpecl 1:4 clock fanout buffer.
