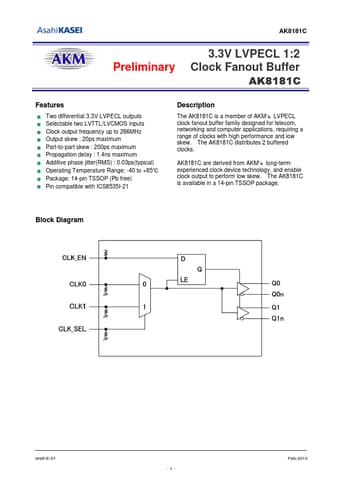

Part number:
AK8181C
Manufacturer:
AKM
File Size:
489.91 KB
Description:
3.3v lvpecl 1:2 clock fanout buffer.
* Two differential 3.3V LVPECL outputs Selectable two LVTTL/LVCMOS inputs Clock output frequency up to 266MHz Output skew : 20ps maximum Part-to-part skew : 200ps maximum Propagation delay : 1.4ns maximum Additive phase jitter(RMS) : 0.03ps(typical) Operating Temperature Range: -40 to +85℃ Package: 14
AK8181C
AKM
489.91 KB
3.3v lvpecl 1:2 clock fanout buffer.
