AK8181G

3.3V LVDS 1:4 Clock Fanout Buffer

AK8181G Features

* Four differential 3.3V LVDS outputs Selectable two LVCMOS/LVTTL clock inputs Clock output frequency up to 650MHz Translates LVCMOS/LVTTL input signals to LVDS levels Output skew : 30ps (maximum) Part-to-part skew : 500ps (maximum) Propagation delay : 2.2ns (maximum) Additive phase jitter(RMS): 0.1ps

AK8181G General Description

The AK8181G is a member of AKM’s LVDS clock fanout buffer family designed for telecom, networking and computer applications, requiring a range of clocks with high performance and low skew. The AK8181G distributes 4 buffered clocks. AK8181G are derived from AKM’s long-termexperienced clock device tec.

AK8181G Datasheet (619.83 KB)

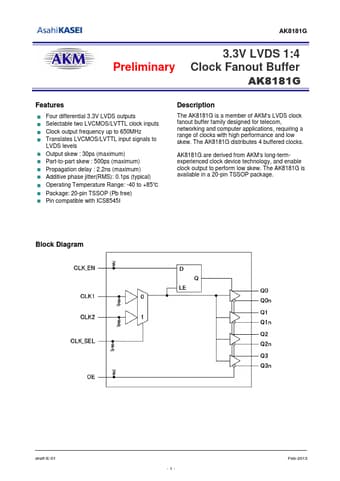

Preview of AK8181G PDF

Datasheet Details

Part number:

AK8181G

Manufacturer:

AKM

File Size:

619.83 KB

Description:

3.3v lvds 1:4 clock fanout buffer.
