AK8185A

Low - Jitter Clock Generator

AK8185A Features

* Low Phase Noise PLL RMS jitter 0.4ps typ. (12kHz to 20MHz) On chip VCO 4x Output Available Pin-Selectable LVPECL, LVDS, or 2-LVCMOS LVCMOS Bypass Output Available 3.3V for Core Operating Temperature Range: -40 to +85℃ Pin Package: 5mm x 5mm 32-pin Leadless QFN (Pb-free) - Description AK8185A is a L

AK8185A General Description

AK8185A is a Low

* Jitter Clock Generator with sub pico-second jitter performance. Also Low power consumption is the advantage for advanced optimized application. - Application Ethernet SONET Fibre Channel SAN Cost-Effective High-Frequency Crystal Oscillator Replacement - Block Diagram Vcc.

AK8185A Datasheet (300.43 KB)

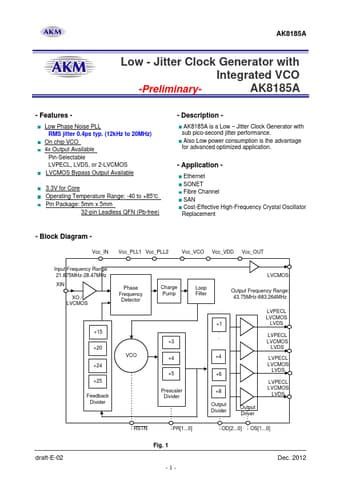

Preview of AK8185A PDF

Datasheet Details

Part number:

AK8185A

Manufacturer:

AKM

File Size:

300.43 KB

Description:

Low - jitter clock generator.
