AK8181H

LVPECL 1:10 Clock Fanout Buffer

AK8181H Features

* Ten differential 2.5V, 3.3V LVPECL outputs Two Selectable differential inputs PCLKxp/n pairs can accept the following differential input levels; LVPECL, LVDS, LVHSTL, SSTL, HCSL Clock output frequency up to 700MHz Translates any single-ended input signal to 3.3V LVPECL levels with resistor bias on P

AK8181H General Description

The AK8181H is a member of AKM’s LVPECL clock fanout buffer family designed for telecom, networking and computer applications, requiring a range of clocks with high performance and low skew. The AK8181H distributes 10 buffered clocks. AK8181H are derived from AKM’s long-termexperienced clock device .

AK8181H Datasheet (575.84 KB)

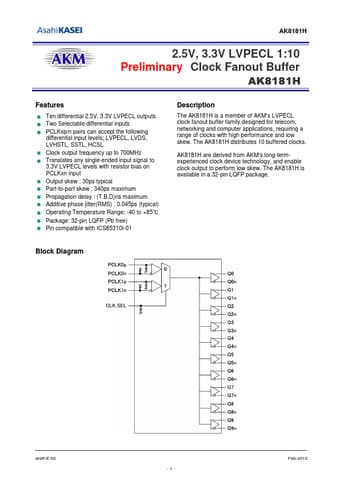

Preview of AK8181H PDF

Datasheet Details

Part number:

AK8181H

Manufacturer:

AKM

File Size:

575.84 KB

Description:

Lvpecl 1:10 clock fanout buffer.
