AK8110A Datasheet, Generator, AKM

AK8110A Features

• Generator Output Frequency Range: 36.0MHz / 38.0MHz (Selectable) Input Frequency: 27MHz Description The AK8110A is a single clock generator IC with an integrated PLL. It can generate either a 36

PDF File Details

Part number:

AK8110A

Manufacturer:

AKM

File Size:

435.55kb

Download:

📄 Datasheet

Description:

Single clock generator. The AK8110A is a single clock generator IC with an integrated PLL. It can generate either a 36.0MHz or 38.0MHz clock from a 27MHz mas

AK8110A Application

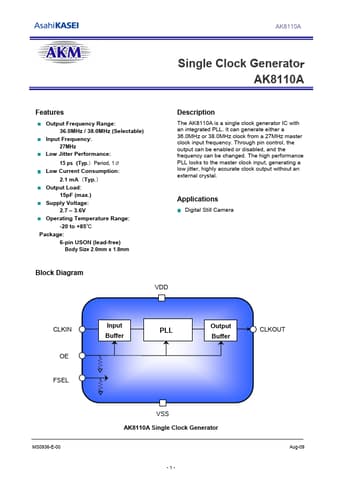

• Applications Digital Still Camera Block Diagram VDD CLKIN Input Buffer PLL Output Buffer CLKOUT OE FSEL VSS AK8110A Single Clock Generator
