AK8110B Datasheet, Generator, AKM

AK8110B Features

• Generator Output Frequency Range: 38.0MHz / 45.0MHz (Selectable) Input Frequency: Low Jitter Performance: 15 ps Typ. Period, 1 27MHz Description The AK8110B is a single clock generator IC with a

PDF File Details

Part number:

AK8110B

Manufacturer:

AKM

File Size:

331.44kb

Download:

📄 Datasheet

Description:

Single clock generator. The AK8110B is a single clock generator IC with an integrated PLL. It can generate either a 45.0MHz or 38.0MHz clock from a 27MHz mas

AK8110B Application

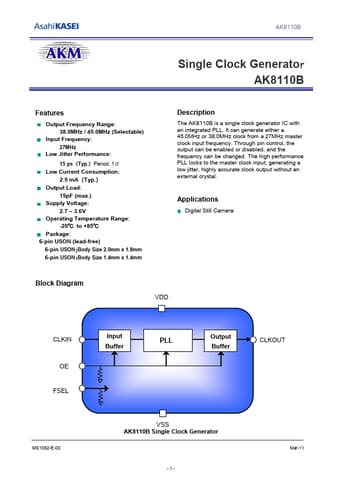

• Applications Digital Still Camera Block Diagram VDD CLKIN Input Buffer PLL Output Buffer CLKOUT OE FSEL VSS AK8110B Single Clock Generator
