AK8135F - Multi Clock Generator

Product Overview

AKM

AK8135F Multi Clock Generator by AKM - Datasheet Preview — Datasheet preview – AK8135F

Datasheet Details

Part number	AK8135F
Manufacturer	AKM
File Size	519.69 KB
Description	Multi Clock Generator
Datasheet	AK8135F Datasheet

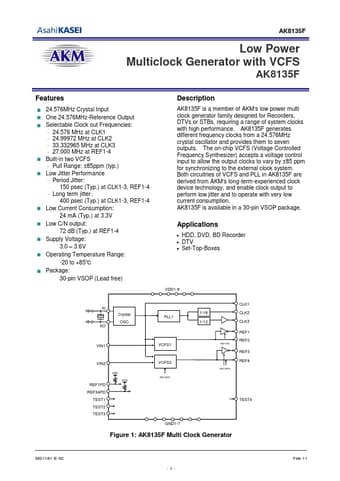

Additional preview pages of the AK8135F datasheet.

Product details

Description

AK8135F is a member of AKM’s low power multi clock generator family designed for Recorders, DTVs or STBs, requiring a range of system clocks with high performance.

Features

24.576MHz Crystal Input One 24.576MHz-Reference Output Selectable Clock out Frequencies: - 24.576 MHz at CLK1 - 24.99972 MHz at CLK2 - 33.332965 MHz at CLK3 - 27.000 MHz at REF1-4 Built-in two VCFS - Pull Range: ±85ppm (typ. ) Low Jitter Performance - Period Jitter: 150 psec (Typ. ) at CLK1-3, REF1-4 - Long term jitter： 400 psec (Typ. ) at CLK1-3, REF1-4 Low Current Consumption: 24 mA (Typ. ) at 3.3V Low C/N output: 72 dB (Typ. ) at REF1-4 Supply Voltage: 3.0.
3.6V Operating Temperature Rang.
