AK8135C - Multi Clock Generator

AK8135C Description

AK8135C Low Power Multiclock Generator with VCFO AK8135C .
AK8135C is a member of AKM’s low power multi clock generator family designed for Recorders, DTVs or STBs, requiring a range of system clocks with high.

AK8135C Features

* 24.576MHz Crystal Input One 24.576MHz-Reference Output Selectable Clock out Frequencies: - 24.576 MHz at CLK1 - 24.99972 MHz at CLK2 - 33.332965 MHz at CLK3 - 74.1758, 74.250 MHz at CLK4 - 36.864 MHz at CLK5 - 27.000 MHz at REF1-3 Built-in VCFO - Pull Range: ±96ppm (typ. ) Low Jitter Performance - Pe

AK8135C Applications

* HDD, DVD, BD Recorder DTV Set-Top-Boxes MS1254-E-00 -1- Nov-10 http://www. Datasheet4U. com AK8135C Block Diagram VDD1-7 CLK1 XI 1/8 PLL1 1/6 VCFO VIN ADC CLK2 Crystal OSC XO Fractional PLL CLK3 REF1 REF2 REF0PD REF3 REF1PD VDD PLL2 CLK4 REF0PD VDD REF0PD HDSE

📥 Download Datasheet

Preview of AK8135C PDF

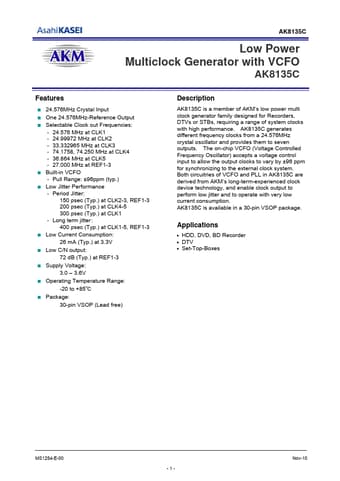

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK8135C
Manufacturer
AKM
File Size
424.54 KB
Datasheet
AK8135C-AKM.pdf
Description
Multi Clock Generator
