AK8131C - Multi Clock Generator

AK8131C Description

ASAHI KASEI EMD CORPORATION Low Power Multiclock Generator with VCXO AK8131C .
The AK8131C is a member of AKEMD’s low power multi clock generator family designed for a feature rich DTV or STB, requiring a range of system clocks w.

AK8131C Features

* 27MHz Crystal Input Clock out Frequencies: REFOUT: 27.000MHz CLK1: 33.000MHz CLK2: 33.000MHz CLK3: 27.000MHz CLK4: 27.000MHz Built-in VCXO - Pull Range: ±100ppm (Min. ) Low Jitter Performance - Period Jitter : 120 psec (Typ. ) at CLK1/CLK2 - Long Term Jitter : 160 psec (Typ. ) at REFOUT/CLK3/4 Low Curr

AK8131C Applications

* Digital TV Sets Personal Video Recorders Set-Top-Boxes Multi Media Receivers Block Diagram VDD X1 Voltage Controlled Crystal Oscillator PLL1 PLL1 CLK1 X2 VIN Divide Logic and Output Control CLK2 CLK3 S0 S1 S2 CLK4 REFOUT GND AK8131C Multi Clock Generator MS0944-E-00 -1- Mar-08 http://ww

📥 Download Datasheet

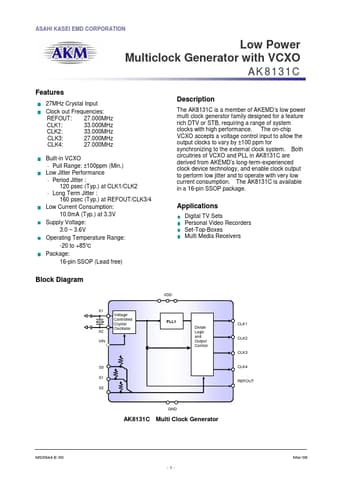

Preview of AK8131C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK8131C
Manufacturer
AKM
File Size
698.54 KB
Datasheet
AK8131C-AKM.pdf
Description
Multi Clock Generator
