AK8443

16bit 30MSPS video ADC

AK8443 Features

* … CCD I/F Channel number D-Range CDS circuit ADC Max. Conversion Rate Resolution Offset DAC Range Resolution PGA Range Resolution Output format Power supply CPU I/F Power consumption Operation Temperature: Package VCLP Black Correction 3ch (2ch.) 1.764Vpp / 2.341Vpp ( typ.) Pos. /Neg. polarity 30MS

AK8443 General Description

No. 1 Name VCLP IO I/O @PD VSS (note1) Description CDS, Clamp mode: Clamp Voltage output, Connect capacitor0.1uF between AVSS and this pin. DC direct mode: sensor reference voltage input Sensor signal input ADC reference voltage. Connect capacitor0.1uF between AVSS and this pin. Sensor signal input.

AK8443 Datasheet (363.74 KB)

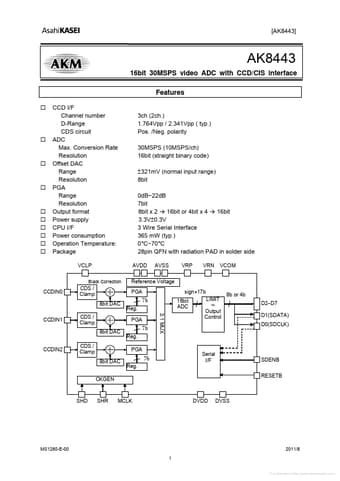

Preview of AK8443 PDF

Datasheet Details

Part number:

AK8443

Manufacturer:

AKM

File Size:

363.74 KB

Description:

16bit 30msps video adc.
