AP4203

LED Driver

AKM

AP4203 Features

* Power Supply Voltage 8.0V~24.0V 4.5V~5.5V (connect VIN pin and VDC1 pin)

* Oprating Temperature 0 ~ 70C

* Absolute Maximum Voltage 30V (VIN, LEDR4~8, LEDG4~8, LEDB4~8)

* 2 Types of Serial Interface for Setting Lighting Data - 4-wire SCI interface (maximum communication clock: 5MHz

AP4203 General Description

The AP4203 is a 15 channel LED Driver that supports 2 types of serial interfaces (SCI serial interface or serial F/F cascade interface) to program LED lighting. The built-in 100mA drivable power MOSFET is used to shut off the LED current, and LEDs are controlled by a PWM method in accordance with th.

AP4203 Datasheet (696.62 KB)

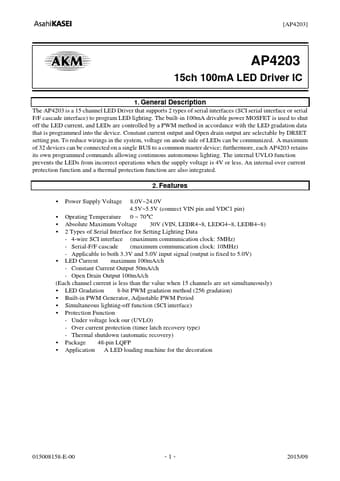

AP4203 Datasheet Preview — Preview of AP4203 PDF

Datasheet Details

Part number:

AP4203

Manufacturer:

AKM

File Size:

696.62 KB

Description:

Led driver.
