AP420N03SLG5 Datasheet, Mosfet, APM

AP420N03SLG5 Features

• Mosfet VDS = 30V ID =420A RDS(ON) < 0.8mΩ @ VGS=10V（Type：0.55mΩ） Application Buck Boost Package Marking and Ordering Information Product ID Pack Marking AP420N03SLG5 STOLL-6L AP420N03

PDF File Details

Part number:

AP420N03SLG5

Manufacturer:

APM

File Size:

761.40kb

Download:

📄 Datasheet

Description:

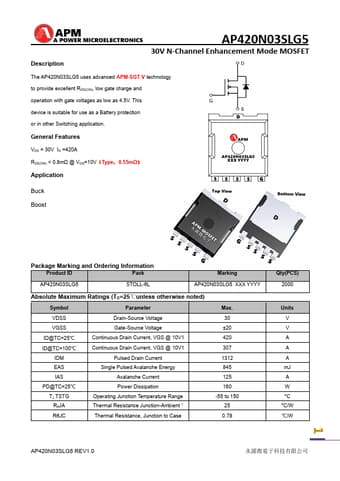

30v n-channel enhancement mode mosfet. AP420N03SLG5 30V N-Channel Enhancement Mode MOSFET The AP420N03SLG5 uses advanced APM-SGT V technology to provide excellent RDS(ON)

AP420N03SLG5 Application

• Applications , should be limited by total power dissipation. 2 AP420N03SLG5 REV1.0 Typical Characteristics AP240N03NF 30V N-Channel Enhancemen
