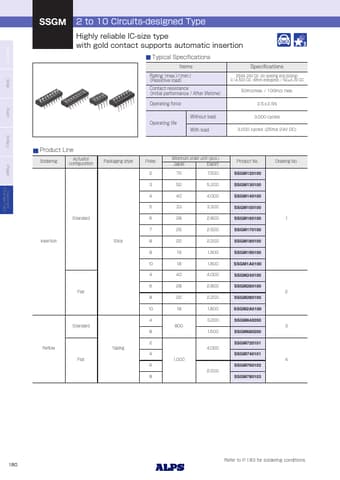

SSGM720101 2 to 10 Circuits-designed Type

Detector Slide Push Rotary Power Dual-in-line Package Type SSGM 2 to 10 Circuits-designed Type Highly reliable IC-size type with gold contact supports automatic insertion Typical Specifications Items Rating（max.）（/ min.）（Resistive load） Contact resistance （Initial performance / After lifetime） Specifications 25mA 24V DC（At opening and closing） 0.1A 50V DC（When energized）/ 50μA 3V DC 50mΩmax. / 100mΩ max. Operating force 3.5±2.5N Operating life Without load With load 3,000 c.
