EP5358HUA 600mA PowerSoC Voltage Mode Synchronous PWM Buck

The EP5358LUA and EP5358HUA are 600mA PowerSoCs that are AEC-Q100 qualified for automotive applications. The EP5358xUA (x = L or H) is rated for up to 600mA of continuous output current. The EP5358xUA integrates MOSFET switches, control, compensation, and the magnetics in an advanced 2.5mm x 2.25mm .

EP5358HUA Features

* Integrated Inductor Technology

* -40°C to +105°C Ambient Temperature Range

* AEC-Q100 Qualified for Automotive Applications

* 2.5mm x 2.25mm x 1.1mm uQFN Package

* Total Solution Footprint 14mm2

* Low VOUT Ripple for RF Compatibility

* High e

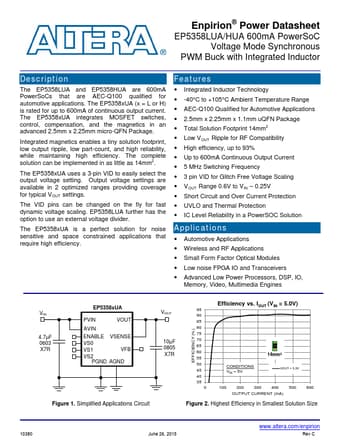

EP5358LUA-ALTERA.pdf

EP5358HUA Datasheet Preview — This datasheet PDF includes multiple part numbers: EP5358HUA, EP5358LUA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EP5358HUA, EP5358LUA

Manufacturer:

ALTERA

File Size:

1.17 MB

Description:

600ma powersoc voltage mode synchronous pwm buck.

Note:

This datasheet PDF includes multiple part numbers: EP5358HUA, EP5358LUA.
Please refer to the document for exact specifications by model.
