EP5368QI Datasheet - Enpirion

EP5368QI - 600mA Synchronous Buck Regulator

VSENSE (Pin 5): Sense pin for preset output voltages.

When using preset voltages connect this to VLOAD or as close to VLOAD as possible to ensure the best regulation.

When using external divider, connect this pin to VOUT.

AGND: (Pin 6):Analog ground.

This is the quiet ground for the internal control

EP5368QI 600mA Synchronous Buck Regulator With Integrated Inductor 3mm x 3mm x 1.1mm Package April 2008 RoHS Compliant Halogen Free Product Overview The EP5368QI is a synchronous buck converter with integrated Inductor, PWM controller, MOSFETS, and Compensation providing the smallest possible solution size.

The EP5368QI requires only two small MLCC capacitors to make a complete solution.

Integration of the inductor greatly simplifies design, contains noise, reduces part count, and reduces solu

EP5368QI Features

* gled on the fly to implement glitch free dynamic voltage sc

EP5368QI_Enpirion.pdf

Preview of EP5368QI PDF

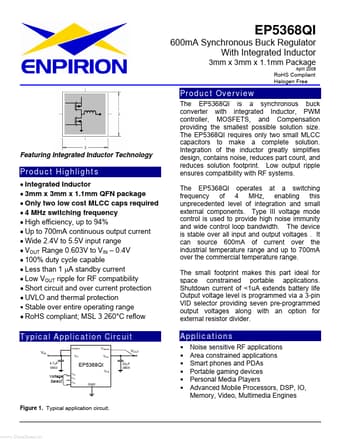

EP5368QI Datasheet Preview Page 2 EP5368QI Datasheet Preview Page 3

Datasheet Details

Part number:

EP5368QI

Manufacturer:

Enpirion

File Size:

324.36 KB

Description:

600ma synchronous buck regulator.
