EP5358HUI - 500mA Synchronous Buck Regulator

Enpirion

📥 Download Datasheet

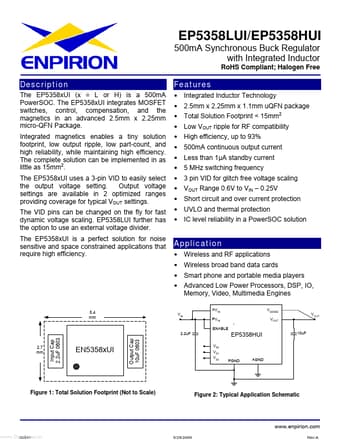

EP5358HUI Datasheet Preview — Preview of EP5358HUI PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EP5358HUI
Manufacturer	Enpirion
File Size	232.71 KB
Description	500mA Synchronous Buck Regulator
Datasheet	EP5358HUI_Enpirion.pdf

EP5358HUI Product details

Description

The EP5358xUI (x = L or H) is a 500mA PowerSOC.

Features

Integrated Inductor Technology 2.5mm x 2.25mm x 1.1mm uQFN package Total Solution Footprint < 15mm2 Low VOUT ripple for RF compatibility High efficiency, up to 93% 500mA continuous output current Less than 1µA standby current 5 MHz switching frequency 3 pin VID for glitch free voltage scaling VOUT Range 0.6V to VIN.
0.25V Short circuit and over current protec.
