EP53A8LQA Datasheet - Altera

EP53A8LQA 1A PowerSoC Voltage Mode Synchronous PWM Buck

The EP53A8LQA and EP53A8HQA are 1A PowerSoCs that are AEC-Q100 qualified for automotive applications. The device integrates MOSFET switches, control, compensation, and the Inductor in an advanced 3mm x 3mm QFN Package. Integrated inductor ensures the complete power solution is fully characterized wi.

EP53A8LQA Features

* Integrated Inductor Technology

* -40°C to +105°C Ambient Temperature Range

* AEC-Q100 Qualified for Automotive Applications

* 3mm x 3mm x 1.1mm QFN Package

* Total Solution Footprint ~ 27mm2

* Low VOUT Ripple for IO Compatibility

* High Effic

EP53A8LQA-Altera.pdf

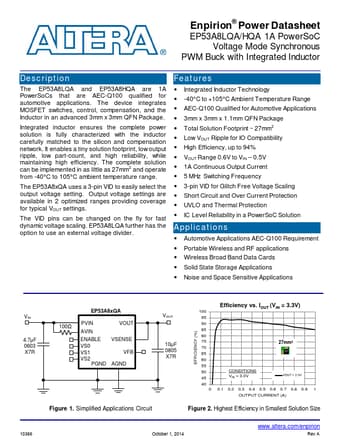

EP53A8LQA Datasheet Preview — Preview of EP53A8LQA PDF

Datasheet Details

Part number:

EP53A8LQA

Manufacturer:

Altera

File Size:

1.03 MB

Description:

1a powersoc voltage mode synchronous pwm buck.
