EP53A8LQI - 1000mA Synchronous Buck Regulator

Product Overview

Enpirion

📥 Download Datasheet

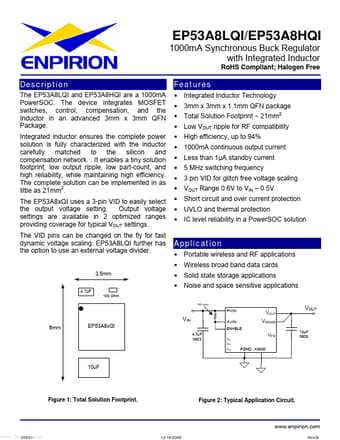

EP53A8LQI 1000mA Synchronous Buck Regulator by Enpirion - Datasheet Preview — Datasheet preview – EP53A8LQI

Datasheet Details

Part number	EP53A8LQI
Manufacturer	Enpirion
File Size	316.21 KB
Description	1000mA Synchronous Buck Regulator
Datasheet	EP53A8LQI Datasheet
Note	This datasheet PDF includes multiple part numbers: EP53A8LQI, EP53A8HQI. Please refer to the document for exact specifications by model.
Additional preview pages of the EP53A8LQI datasheet.

Product details

Description

The EP53A8LQI and EP53A8HQI are a 1000mA PowerSOC.

Features

Integrated Inductor Technology 3mm x 3mm x 1.1mm QFN package Total Solution Footprint ~ 21mm2 Low VOUT ripple for RF compatibility High efficiency, up to 94% 1000mA continuous output current Less than 1µA standby current 5 MHz switching frequency 3 pin VID for glitch free voltage scaling VOUT Range 0.6V to VIN.
0.5V Short circuit and over current protection U.
