EP53A8HQI - 1000mA Synchronous Buck Regulator

Product Overview

Enpirion

📥 Download Datasheet

EP53A8HQI 1000mA Synchronous Buck Regulator by Enpirion - Datasheet Preview — Datasheet preview – EP53A8HQI

Datasheet Details

Part number	EP53A8HQI
Manufacturer	Enpirion
File Size	316.21 KB
Description	1000mA Synchronous Buck Regulator
Datasheet	EP53A8HQI Datasheet

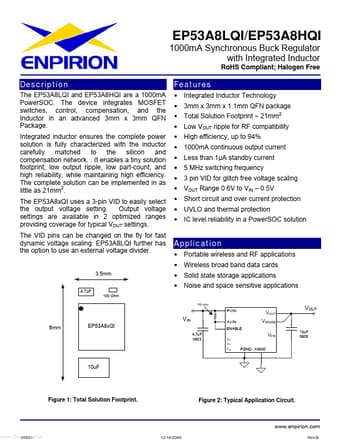

Additional preview pages of the EP53A8HQI datasheet.

Product details

Description

The EP53A8LQI and EP53A8HQI are a 1000mA PowerSOC.

Features

Integrated Inductor Technology 3mm x 3mm x 1.1mm QFN package Total Solution Footprint ~ 21mm2 Low VOUT ripple for RF compatibility High efficiency, up to 94% 1000mA continuous output current Less than 1µA standby current 5 MHz switching frequency 3 pin VID for glitch free voltage scaling VOUT Range 0.6V to VIN.
0.5V Short circuit and over current protection U.
