S3056

MULTI-RATE SONET/SDH CLOCK RECOVERY UNIT

S3056 Features

* SiGe BiCMOS technology

* Complies with Bellcore and ITU-T specifications for jitter tolerance, jitter transfer and jitter generation

* On-chip high frequency PLL with internal loop filter for clock recovery

* Supports clock recovery for: OC-48 (2488.32 Mbps), Fibre

S3056 General Description

The function of the S3056 clock recovery unit is to derive high speed timing signals for SONET/SDHbased equipment. The S3056 is implemented using AMCC’s proven Phase Locked Loop (PLL) technology. Figure 1 shows a typical network application. The S3056 receives an OC-48, OC-24, OC-12, OC-3, Fibre Cha.

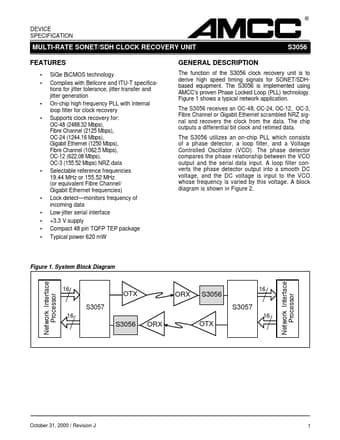

S3056 Datasheet (149.67 KB)

Preview of S3056 PDF

Datasheet Details

Part number:

S3056

Manufacturer:

AMCC

File Size:

149.67 KB

Description:

Multi-rate sonet/sdh clock recovery unit.
