S3053

5CH BTL Motor Drive IC

S3053 Features

* ◈ 1 Channel is bi-directional DC motor driver for tray. ◈ 4 Channels are voltage-type BTL drivers for actuators, sled and spindle motors. ◈ Built in Level shift circuit. ◈ Built in Thermal shut down circuit. ◈ Built in Mute mode. ◈ Built in 2 Regulator controllers. Adjustable range [ 1.25V to 4V ] ◈

S3053 General Description

The S3053 is 5 Channel BTL DC motor drivers IC for controlling the motors and actuators of DVD-Player and it contain 2 independent precision voltage regulators with adjustable range from 1.24V to 4V. Furthermore, it offers a voltage detector for system reset. It supports various applications with pb.

S3053 Datasheet (520.76 KB)

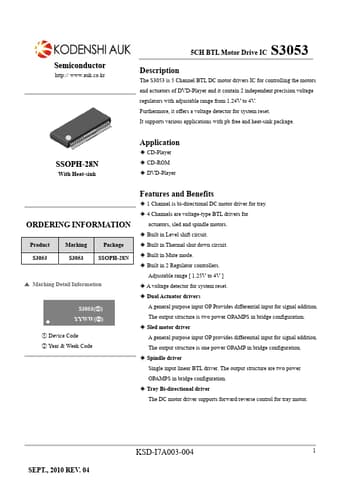

Preview of S3053 PDF

Datasheet Details

Part number:

S3053

Manufacturer:

KODENSHI KOREA

File Size:

520.76 KB

Description:

5ch btl motor drive ic.
