S3056

5CH BTL Motor Drive IC

S3056 Features

* ◈ 1 Channel is bi-directional DC motor driver for tray. ◈ 4 Channels are voltage-type BTL drivers for actuators[ focus, tracking ] and sled, spindle motors. ◈ Built in general-purpose voltage open collector output 2 comparators. ◈ Separating power of Vcc1 an

S3056 General Description

The S3056 contains 4 channels voltage-type BTL drivers for actuators [ focus, tracking ] and sled, spindle motor drivers and it also contains 1 channel of bi-directional tray motor driver. Furthermore it embraces 2 independent precision voltage comparators for external application circuits even ampl.

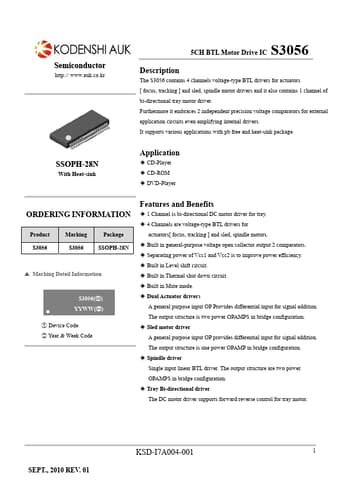

S3056 Datasheet (506.00 KB)

Preview of S3056 PDF

Datasheet Details

Part number:

S3056

Manufacturer:

KODENSHI KOREA

File Size:

506.00 KB

Description:

5ch btl motor drive ic.
