AM29DL163D

(AM29DL16xD) 16 Megabit (2 M X 8-Bit/1 M X 16-Bit) Boot Sector

AM29DL163D Features

* Data Management Software (DMS)

* AMD-supplied software manages data programming and erasing, enabling EEPROM emulation

* Eases sector erase limitations

* Supports Common Flash Memory Interface (CFI)

* Erase Suspend/Erase Resume

* Suspends erase operations to all

AM29DL163D General Description

The Am29DL16xD family consists of 16 megabit, 3.0 volt-only flash memory devices, organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. Word mode data appears on DQ0

*DQ15; byte mode data appears on DQ0

*DQ7. The device is designed to be programmed in-system w.

AM29DL163D Datasheet (1.26 MB)

Preview of AM29DL163D PDF

Datasheet Details

Part number:

AM29DL163D

Manufacturer:

AMD

File Size:

1.26 MB

Description:

(am29dl16xd) 16 megabit (2 m x 8-bit/1 m x 16-bit) boot sector.

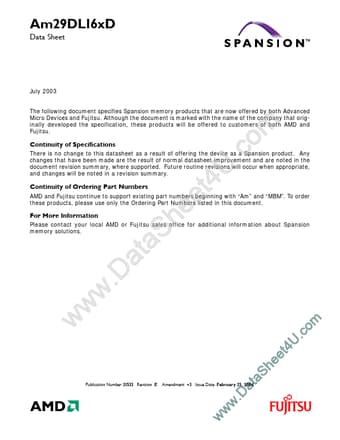

Am29DL16xD Data Sheet July 2003 The following document specifies Spansion memory products that are now offered by both Advanced Micro Devices and Fuj.
