AM29DL164D, AM29DL161D Datasheet - AMD

AM29DL164D (AM29DL16xD) 16 Megabit (2 M X 8-Bit/1 M X 16-Bit) Boot Sector

The Am29DL16xD family consists of 16 megabit, 3.0 volt-only flash memory devices, organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. Word mode data appears on DQ0 *DQ15; byte mode data appears on DQ0 *DQ7. The device is designed to be programmed in-system w.

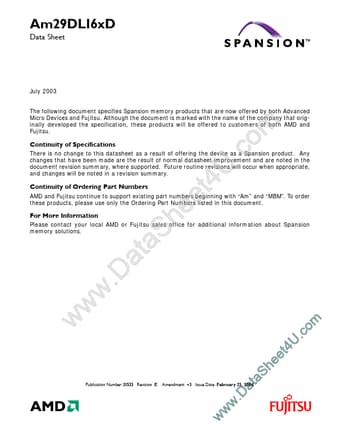

Am29DL16xD Data Sheet July 2003 The following document specifies Spansion memory products that are now offered by both Advanced Micro Devices and Fujitsu. Although the document is marked with the name of the company that originally developed the specification, these products will be offered to customers of both AMD and Fujitsu. Continuity of Specifications There is no change to this datasheet as a result of offering the device as a Spansion product. Any changes that have been made are the res.

AM29DL164D Features

* Data Management Software (DMS)

* AMD-supplied software manages data programming and erasing, enabling EEPROM emulation

* Eases sector erase limitations

* Supports Common Flash Memory Interface (CFI)

* Erase Suspend/Erase Resume

* Suspends erase operations to all

AM29DL161D_AMD.pdf

AM29DL164D Datasheet Preview — This datasheet PDF includes multiple part numbers: AM29DL164D, AM29DL161D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AM29DL164D, AM29DL161D

Manufacturer:

AMD

File Size:

1.26 MB

Description:

(am29dl16xd) 16 megabit (2 m x 8-bit/1 m x 16-bit) boot sector.

Note:

This datasheet PDF includes multiple part numbers: AM29DL164D, AM29DL161D.
Please refer to the document for exact specifications by model.
