Am29DL16xC

Simultaneous Operation Flash Memory

Am29DL16xC Features

* s Data Management Software (DMS)

* AMD-supplied software manages data programming and erasing, enabling EEPROM emulation

* Eases sector erase limitations s Supports Common Flash Memory Interface (CFI) s Erase Suspend/Erase Resume

* Suspends erase operations to allow programmi

Am29DL16xC General Description

The Am29DL16xC family consists of 16 megabit, 3.0 volt-only flash memory devices, organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. Word mode data appears on DQ0

*DQ15; byte mode data appears on DQ0

*DQ7. The device is designed to be programmed in-system w.

Am29DL16xC Datasheet (738.86 KB)

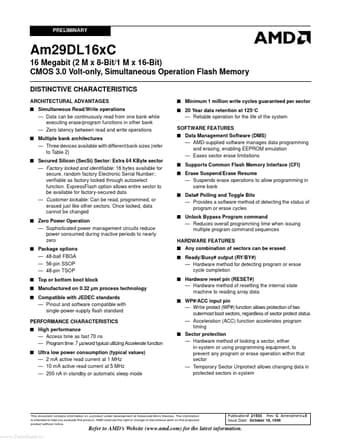

Preview of Am29DL16xC PDF

Datasheet Details

Part number:

Am29DL16xC

Manufacturer:

Advanced Micro Devices

File Size:

738.86 KB

Description:

Simultaneous operation flash memory.
PRELIMINARY Am29DL16xC 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only, Simultaneous Operation Flash Memory DISTINCTIVE CHARACTERISTICS ARCH.
