AM29LV017D

16 Megabit (2 M x 8-Bit) CMOS 3.0 Volt-only Uniform Sector Flash Memory

AM29LV017D Features

* A hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked in-system or via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors s Unlock Bypass Program Command

* Reduces over

AM29LV017D General Description

The Am29LV017D is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes. The device is offered in 48-ball FBGA and 40-pin TSOP packages. The byte-wide (x8) data appears on DQ7

*DQ0. All read, program, and erase operations are accomplished using only a single power supply. The dev.

AM29LV017D Datasheet (955.39 KB)

Preview of AM29LV017D PDF

Datasheet Details

Part number:

AM29LV017D

Manufacturer:

AMD

File Size:

955.39 KB

Description:

16 megabit (2 m x 8-bit) cmos 3.0 volt-only uniform sector flash memory.

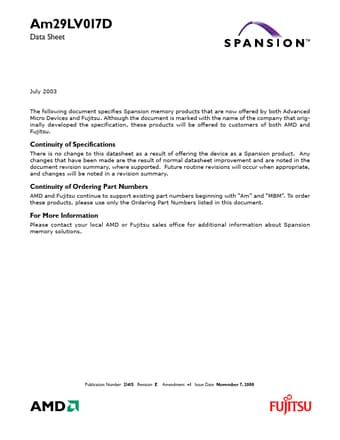

Am29LV017D Data Sheet July 2003 The following document specifies Spansion memory products that are now offered by both Advanced Micro Devices and Fuj.
