The Am29PDL127H is a 128 Mbit, 3.0 volt-only Page Mode and Simultaneous Read/Write Flash memory device organized as 8 Mwords.
The device is offered in an 80-ball Fine-pitch BGA package, and various multi-chip packages.
The word-wide data (x16) appears on DQ15-DQ0.
This device can be programmed in-sy

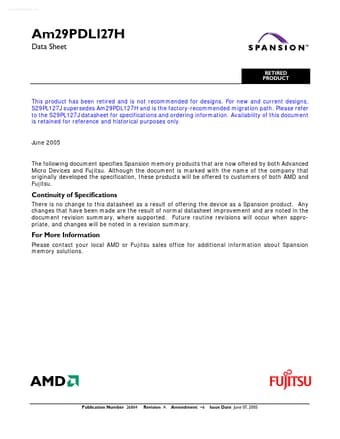

www.DataSheet4U.com Am29PDL127H Data Sheet RETIRED PRODUCT This product has been retired and is not recommended for designs.
For new and current designs, S29PL127J supersedes Am29PDL127H and is the factory-recommended migration path.
Please refer to the S29PL127J datasheet for specifications and ordering information.
Availability of this document is retained for reference and historical purposes only.
June 2005 The following document specifies Spansion memory products that are now offered by
AM29PDL127H Features
* Software command-set compatible with JEDEC 42.4 standard
* Backward compatible with Am29F and Am29LV families
* Single power supply operation
* Full Voltage range: 2.7 to 3.6 volt read, erase, and program operations for battery-powered applications
* Simultaneous Read
Datasheet Details
AM29PDL127H
AMD
0.99 MB
Page mode simultaneous read/write flash memory.
